Product Details
Environmental Test Chambers
BINDER Worldwide KBF 240 Humidity Test Chamber- BINDER Worldwide KBF and KMF Humidity Test Chamber
- Case Study of Leatherhead Food Research using Binder Chambers
- Benefits of KBF Humidity Test Chamber in Tropical Climate Zone IV
- of 4Start Over

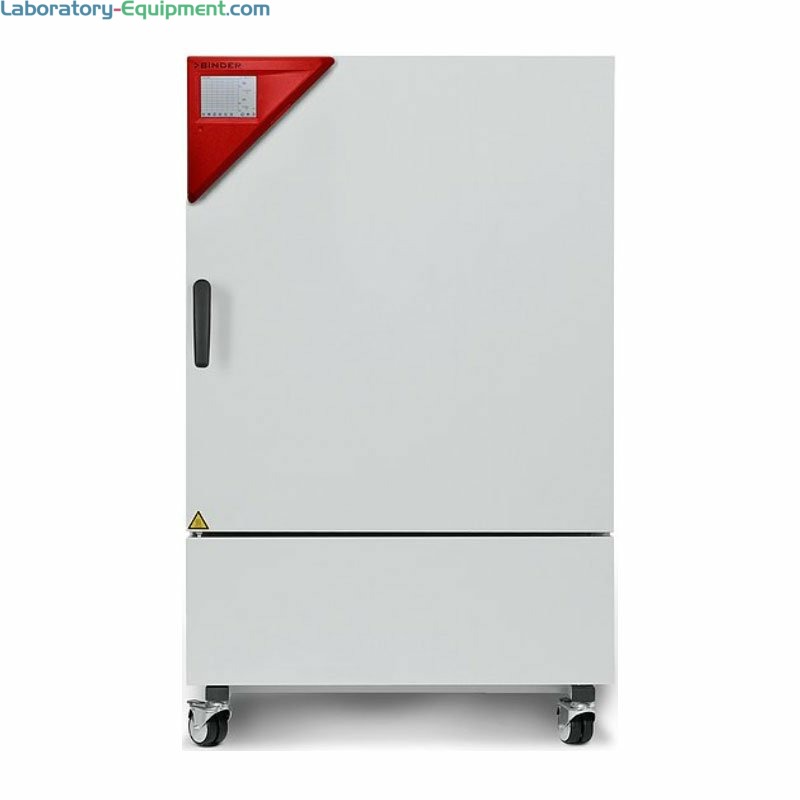

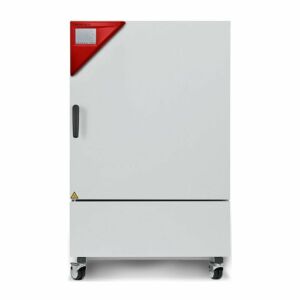

KBF 240 Humidity Test Chamber with a 8.72 cu. ft. capacity provides uniform temperature and humidity conditions | 1410-06 displayed BINDER Worldwide KBF 240 Humidity Test Chamber KBF 240 Humidity Test Chamber with a 8.72 cu. ft. capacity provides uniform temperature and humidity conditions; 2 stainless steel shelves and 4 casters.
Features & Benefits
Features and Benefits
Double Sided Air Flow
Doubled sided airflow ensures constant temperature and humidity across the entire testing area under full load conditions.
Climate Diagram
Wide temperature and humidity range maintain maximum parameter uniformity for optimum conditions within the test chamber environment
ICH Check Points for BINDER KBF Series
Shows temperature and humidity ICH checkpoints for long-term testing, accelerated testing and stress testing of KBF Test Chambers.
Stainless steel chamber and corrosion-resistant glass inner door
KBF P Humidity test chambers feature stainless steel inner chamber and racks; the tight-sealing inner door made of ESG safety glass is coated to resist corrosion
Products similar to this one
-
Some ship in 20 - 26 days -
Some ship in 15 - 21 days
Page 1 of 1
Other products you may find relevant
-
Some ship in 1 - 3 days -
Usually Ships in 12 - 22 days - Some ship in 20 - 26 days
- Some ship in 15 - 21 days
-
Some ship in 5 - 7 days
Page 1 of 2
Buy Accessories
Manuals & Resources
KBF Series Humidity Test Chambers
Light Cassettes, LQC and data logger with optional ambient sensor
Binder offers a wide variety of options for the KBF Series Humidity chambers from additional stainless steel shelves and access ports to Data Logger Kits and calibration certificates
Water Source Options for KBF Series Humidity Test Chambers
Binder offers water source options for the KBF Series to satisfy various water supply preferences when using house water or BINDER Pure Aqua; external water tanks are also available
BINDER Growth Chambers Options and Accessories
- Access port with silicone plug (right, left or top from 30 mm to 100 mm)
- Alarm output, zero-voltage
- Analog output 4-20 mA
- Calibration certificate, expanded
- Calibration certificate, temperature
- Calibration certificate, temperature and humidity
- Class 3.3 independent temperature safety device
- Converter, voltage
- Data Logger Kit
- Data Logger Software
- Door lock
- Interface converter
- Interface converter, USB / RS422
- Interior socket
- LED light bars
- pH-neutral detergent
- PT 100 temperature sensor
- Rack accessories
- Rack, reinforced
- Stainless steel racks
- Stainless steel perforated shelves
- RS 422 interface
- RS 422 interface, cable (15 m)
- RS 422 interface, cable (50 m)
- RS 485, 2- wire
- Software (various versions of the APT-COM communications software)
- Water supply set
| Model | KBF 115 | KBF 240 | KBF 720 | KBF 1020 |
|---|---|---|---|---|
| Internal Volume | 3.6 cu. ft. (102L) | 8.72 cu. ft. (247 L) | 24.72 cu. ft. (700 L) | 36 cu. ft. (1020L) |
| External Dimensions W" x D" x H" (mm) | 34.7 x 25.6 x 41.3 in. (880 x 650 x 1050 mm | 36.4 x 31.5 x 57.5 in. (925 x 800 x 1460 mm) | 49.21 x 35.04 x 75.79 in. (1250 x 890 x 1925 mm) | 49.21 x 45.1 x 75.79 in. (1250 x 1145 x 1925 mm) |
| Internal Dimensions W" x D" x H" (mm) | 23.6 x 13.8 x 19.0 in. (600 x 351 x 483mm) | 25.59 x 19.09 x 30.91 in. (650 x 485 x 785 mm) | 38.31 x 22.68 x 49.21 in (973 x 576 x 1250 mm) | 38.4 x 32.9 x 49.21 in. (976 x 836 x 1250 mm) |
| Temperature range [°C] | 0-70 | 0-70 | 0-70 | 0-70 |
| Temperature variation at 40 °C [± K] | 0.2 | 0.3 | 0.2 | 0.2 |
| Temperature fluctuation [± K] | 0.1 | 0.1 | 0.1 | 0.5 |
| Max. heat compensation at 40 °C [W] | 200 | 300 | 600 | 600 |
| Temperature range [°C] | 10-70 | 10-70 | 10-70 | 10-70 |
| Temperature variation at 25 °C and 60 % RH [± K] | 0.2 | 0.3 | 0.2 | 0.2 |
| Temperature variation at 40 °C and 75 % RH [± K] | 0.2 | 0.3 | 0.2 | 0.2 |
| Temperature fluctuation at 25 °C and 60 % RH [± K] | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature fluctuation at 40 °C and 75 % RH [± K] | 0.1 | 0.1 | 0.1 | 0.1 |
| Humidity range [% RH] | 10-80 | 10-80 | 10-80 | 10-80 |
| Humidity fluctuation at 25 °C and 60 % RH | ≤2 ± % RH | 1.5 ± % RH | 1.5 ± % RH | 1.5 ± % RH |
| Humidity fluctuation at 40 °C and 75 % RH | ≤2 ± % RH | 1.5 ± % RH | 1.5 ± % RH | 1.5 ± % RH |
| Inner doors | 1 | 1 | 2 | 2 |
| Unit doors | 1 | 1 | 2 | 2 |
| permitted load [lbs.] | 220 | 220 | 331 | 331 |
| Load per rack [lbs.] | 66 | 66 | 99 | 99 |
| Energy consumption at 40 °C and 75 % RH [Wh/h] | 470 | 650 | 620 | 650 |
| Sound-pressure level [dB(A)] | 52 | 52 | 53 | 56 |
| Number of shelves (std./max.) | 2/5 | 2/9 | 2/15 | 2/15 |
| Electrical | 200-230v, 50/60Hz | 200-230v, 50/60Hz | 200-230v, 50/60Hz | 200-230v, 50/60Hz |
