- Configured models available with MCA or MCE control units
- Weighing Capacity: 80g to 520g
- Readability: 0.01 mg to 0.1 mg
- Weighing Pan Size: 85 x 85 mm
- Integrated ionizer in select glass draft shield eliminates electrostatic charges
Balances
5704-PP-04
5704-PP-04 75792
Cubis II Analytical Balances by Sartorius
Read more
Manufactured By: Sartorius
Warranty: Two-year manufacturer warranty
Print
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details
Balances
Cubis II Analytical Balances by Sartorius
Modular Cubis II Analytical Balances are preconfigured with software, integrated ionizer and draft shield on select models; capacity of 80g to 520 g Cubis II Analytical Balances by Sartorius Cubis II Analytical Balances with a readability as low as 0.1 mg provide accurate weighing of samples ideal in quantitative analyses
Features & Benefits
Features and Benefits
Cubis II Balances Gesture Control
Gesture control feature enables touch-free operation; user can start, open and close the draft shield and send documents to a remote device
MCA Advanced User Interface
Features a 7” TFT touchscreen display in 16:9 format with an intuitive user interface and factory installed basic set of weighing applications

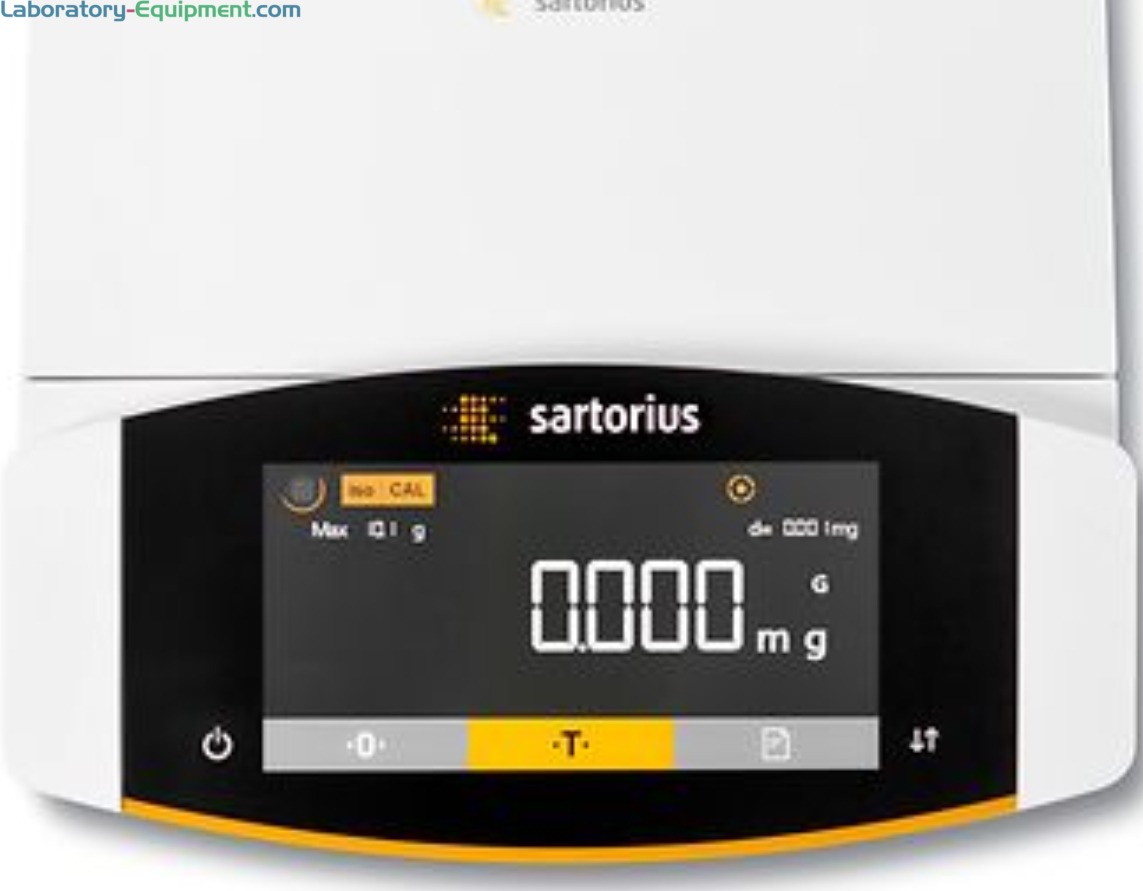

MCE Display and Control for Basic Weighing
TFT touch screen with factory installed weighing applications, enables configuration of automated draft shield and built-in ionizer; after purchase upgrade not available
Efficient Connectivity
Cubis II balances with an MCA interface feature USB A, B and C ports enabling efficient data transfer with external software systems

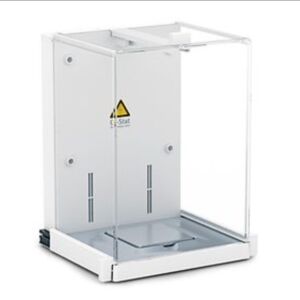

Neutralizes Electrostatic Charges
Select Cubis II Lab Balances feature an integrated ionizer and conductive glass panels that neutralize electrostatic charges

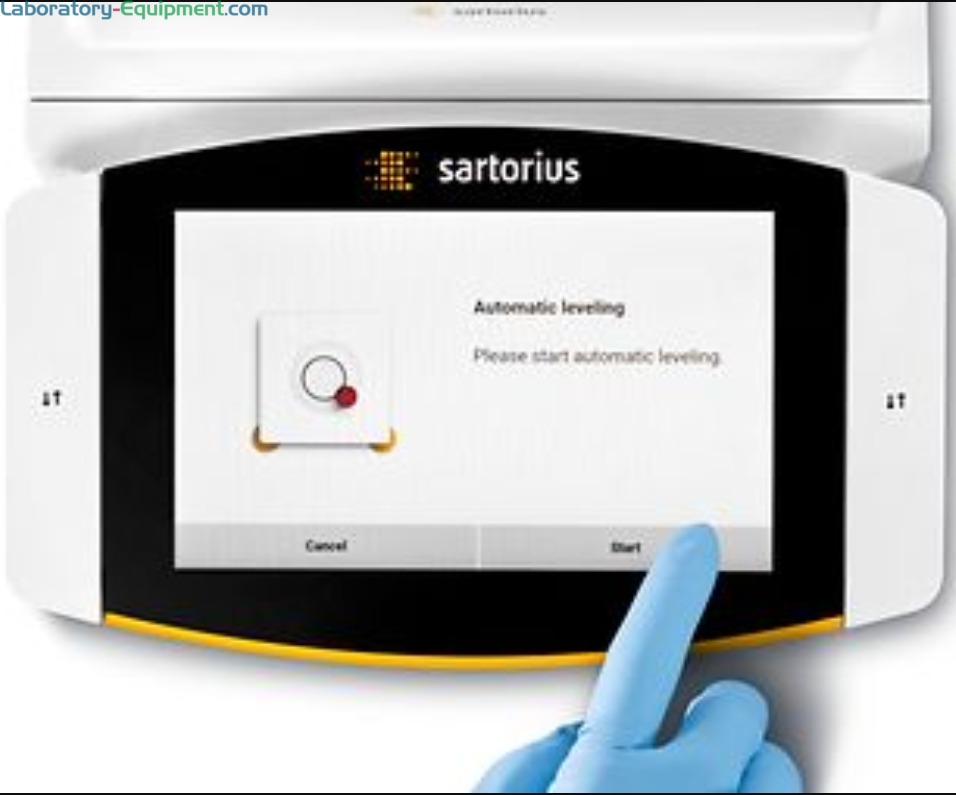

Automatic Motorized Leveling
Models with a ≤ 8.2 kg weighing capacity feature built-in motors for automatic leveling and alerts when re-leveling is required
Products similar to this one
-
Some ship in 5 - 7 days -
Some ship in 5 - 7 days -
Some ship in 5 - 7 days
Page 1 of 1
Other products you may find relevant
-
Some ship in 5 - 7 days -
Some ship in 1 - 3 days -
Group of 21 productsErgoHeight™ Electric Height Adjustable Cleanroom Workstations FromAs low as $1,705Some ship in 1 - 3 days -
Some ship in 1 - 3 days -
Some ship in 20 - 24 days -
Some ship in 18 - 22 days
Page 1 of 2
Buy Accessories
Manuals & Resources
Additional Features
Cubis II Lab Balances by Sartorius
- Ultra-Micro and Microbalances, with a maximum load of 2.1 g to 10.1 g and readability from 0.1 µg and 1 µg, are ideal for standard lab weighing applications. Models are available with an automatic glass draft shield or a manual stainless steel draft shield.
- Semi-Micro and Analytical models, with a maximum load from 120 g to 520 g and readability from 0.01 mg to 0.1 mg, are available with an automatic glass draft shield.
- Precision balances, with a maximum load from 320 g to 14,200 g and readability from 1 mg to 100 mg, are available with an automatic glass draft shield or a removable stainless steel draft shield.
- High-Capacity models have a maximum load from 11.2 kg to 70 kg and readability from 100 mg to 1 g.
Cubis II Balances Compatibility with Fume Hoods
Select Cubis II balances are compatible with enclosures and fume hoods when used with the Q-Grid Pan. The Q-Grid Pan, compatible with balances with a readability of 10 mg and 100 mg (except for #52025), is ideal for use in drafty environments due to the reduced surface area design of the pan.
MCA and MCE control units are available for all Cubis II Lab Balances.
 |  | ||
|---|---|---|---|
| Type | MCA | Type | MCE |
| Display | Large high end 7" color touch TFT display in 16:9 format with new user interface | Display | State of the art TFT touch screen operation with brilliant, readable, display but uncomplex, easy to operate user interface |
| Software | Factory installed basic set of essential weighing applications (license free) and Packages with special weighing applications and function extentsions (license required) | Software | Factory installed basic set of essnetial weighing applications |
| Operaton | Activated by touch key, touch-free using IR sensor (draft shield M) or gesture snsor (optional), learning capability | Operaton | Activated by touch key, touch-free using IR sensor (draft shield M) or gesture sensor (optional) learning capability |
