BINDER VD-23 0.8 cu. ft. Vacuum Drying Chamber provides fast, gentle drying of non-flammable solvents; includes one aluminum expansion rack...

BINDER VD-23 0.8 cu. ft. Vacuum Drying Chamber provides fast, gentle drying of non-flammable solvents; includes one aluminum expansion rack

Ovens

VD and VDL Series Vacuum Drying Chambers by Binder

Provides fast, gentle drying of flammable and non-flammable solvents without residue
Large thermal conducting plates deliver optimum heat transfer
VDL explosion-proof models with ATEX compliance for flammable solvents
Optional vacuum pump and pump chamber create a complete system
Includes repositionable aluminum expansion racks

Manufactured By: Binder

Warranty: Two-Year Manufacturer Warranty

Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Select Product

Voltage All 100/120 V Sort Order: Descending Ascending	Type All Vacuum Sort Order: Descending Ascending	Controls All Digital Sort Order: Descending Ascending	Maximum Temperature All +110 °C +220 °C Sort Order: Descending Ascending	Capacity All 0.8 cu. ft. 1.9 cu. ft. 4.2 cu. ft. Sort Order: Descending Ascending	Model All VD VDL Sort Order: Descending Ascending	Manufacturer SKU All 9630-0006 9630-0015 9630-0014 9630-0013 9630-0007 9630-0005 Sort Order: Descending Ascending	Capacity Range All 4 to 8 cubic feet <4 cubic feet Sort Order: Descending Ascending	Terra Part #	Price	Ships in

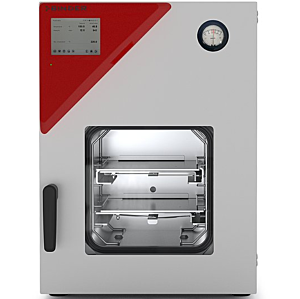

100/120 V	Vacuum	Digital	+110 °C	0.8 cu. ft.	VDL	9630-0013	<4 cubic feet	2828-34 77228	$13,216	15-20 Days	2

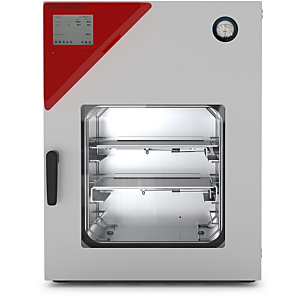

100/120 V	Vacuum	Digital	+110 °C	1.9 cu. ft.	VDL	9630-0014	<4 cubic feet	2828-35 77229	$14,358	15-20 Days	3
100/120 V	Vacuum	Digital	+110 °C	4.2 cu. ft.	VDL	9630-0015	4 to 8 cubic feet	2828-36 77230	$18,420	15-20 Days	4

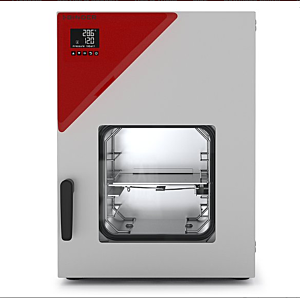

100/120 V	Vacuum	Digital	+220 °C	0.8 cu. ft.	VD	9630-0005	<4 cubic feet	2828-31 77225	$7,230	15-20 Days	5

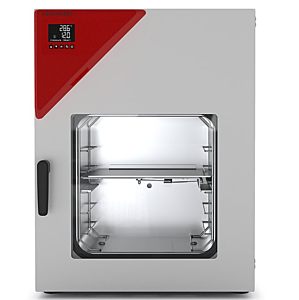

100/120 V	Vacuum	Digital	+220 °C	1.9 cu. ft.	VD	9630-0006	<4 cubic feet	2828-32 77226	$8,596	15-20 Days	6

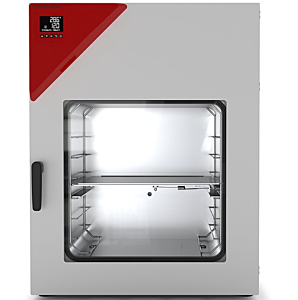

100/120 V	Vacuum	Digital	+220 °C	4.2 cu. ft.	VD	9630-0007	4 to 8 cubic feet	2828-33 77227	$11,329	15-20 Days	7

Voltage

Type

Controls

Maximum Temperature

Capacity

Model

Manufacturer SKU

Capacity Range

Some ship in:

Usually Ships in:

CHOOSE ACCESSORIES & BUY OR QUOTE

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

See Product Details

Back to product group

Select a product line for product summary

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Product Details

Features & Benefits

Available Accessories

Products similar to this one

Buy Accessories

Manuals & Resources

Product Details

Provides fast, gentle drying of flammable and non-flammable solvents without residue
Large thermal conducting plates deliver optimum heat transfer
VDL explosion-proof models with ATEX compliance for flammable solvents
Optional vacuum pump and pump chamber create a complete system
Includes repositionable aluminum expansion racks

Standard features:

Program-controlled drying monitoring with automatic ventilation at end of process

Shatterproof, spring-mounted safety glass panel, internal data logger, measured values can be read out in open

format via USB, Ethernet interface, Inert gas connection

VD Series features:

Temperature range: ambient temperature +9 °C to +220 °C

LCD Controller with digital display of pressure and temperature

Large viewing window with option of interior lighting

2 relay outputs, 24 V DC (max. 0.4 A)

VDL Series features:

Temperature range: Ambient temperature +9 °C to +110 °C

ATEX-compliant unit: category EX II 2/3/- G IIB T3 Gb/Gc/- X

Explosion-proof protected interior

TFT intuitive touchscreen controller with graphical pressure and temperature display

Pressure control device for heating activated from < 100 mbar

Universal connection for ventilation with ambient air or inert gas

DN 16 universal access port with small flange and blind flange

Options and accessories: touchscreen controller, expansion racks, universal ventilation, analogue output for temperature and pressure, DN 40 universal access port, vacuum pumps, pump module with vacuum pumps, APT.cm software (GLP-compliant available), qualification documents

Features & Benefits

Features and Benefits

VDL Explosion-Proof Interior

ATEX-compliant unit features a pressure control device for heating activation at a vacuum of under100 mbar

Automatic Drying Detection

Program control feature detects the second pressure drop that occurs at the end of drying and automatically ventilates the interior

Jacket Heating

Delivers optimum heat transfer and precise temperature control with patented expansion racks that allow flexible placement

Safety Feature

Units provide a shatterproof, spring-mounted safety glass panel, electronic components decoupled from the interior and an inert gas connection for interior flushing

Available Options

Choose various vacuum pumps and compatible chamber for a modular complete system

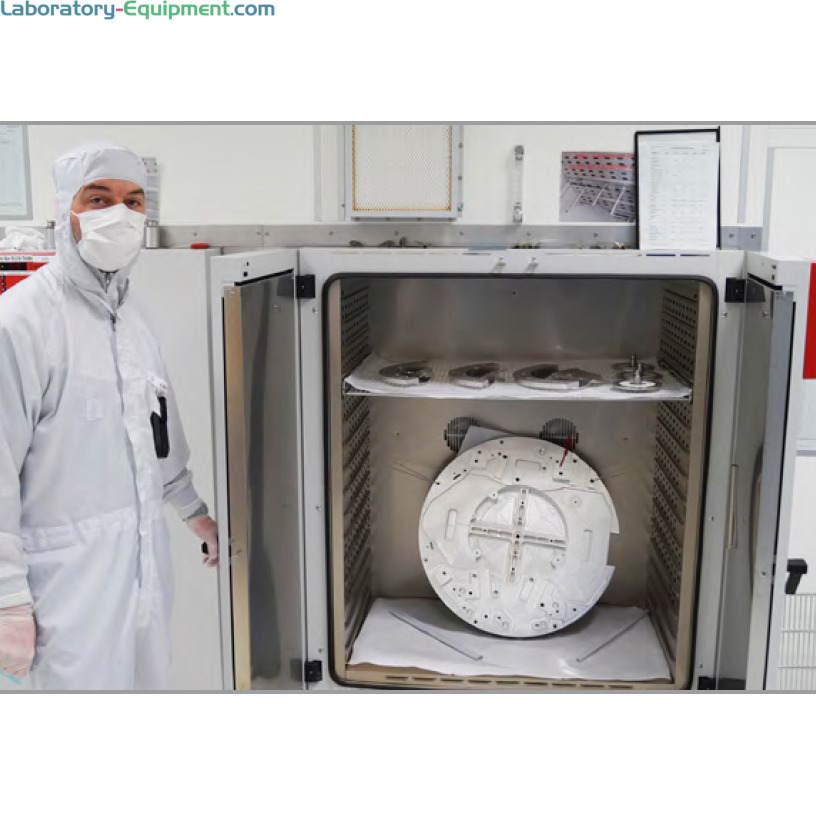

Cleanroom Compatible

BINDER vacuum drying chambers are ideal for use in cleanrooms when drying components that must be delivered in an absolutely clean state
