Analytical Instruments
Product Group:
5300-PP-09
5300-PP-09 79182

QuadCount™ Automated Cell Counters by Accuris Instruments

  • Automated cell counter with count speeds as fast as 20 seconds per sample
  • Advanced software with touch-screen interface reduces counting errors and saves time
  • High quality optics include: LED light source, 4X objective lens, and 5MP CMOS detector
  • Utilizes cost-effective 4-Chambered disposable QuadSlides™ for twice the capacity
  • Analyze different sample volumes up to 3.6 ul with 3 count modes
Read more
Manufactured By: Benchmark
Print
Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Power

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part #PriceShips in
115 V AC Adapter E7500 5300-37 79183 $3,8485-7 Days2
Ships Free Free shipping in contiguous USA
230 V AC Adapter E7500-E 5300-38 79186 $3,8485-7 Days3
Ships Free Free shipping in contiguous USA
Voltage
Power
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Automated cell counter with count speeds as fast as 20 seconds per sample
  • Advanced software with touch-screen interface reduces counting errors and saves time
  • High quality optics include: LED light source, 4X objective lens, and 5MP CMOS detector
  • Utilizes cost-effective 4-Chambered disposable QuadSlides™ for twice the capacity
  • Analyze different sample volumes up to 3.6 ul with 3 count modes
  • QuadCount™ advantages over the time consuming manual Hemocytometry method include:
  • 3 Count Modes increases accuracy by analyzing larger sample volumes/multiple image frames (up to 24)
  • Quick Mode: 0.15uL / 20 seconds (1 image frame)
  • Normal Mode: 0.9 uL / 30 seconds (6 image frames)
  • Precise Mode: 3.6 uL/ 100 seconds (24 image frames)
  • High quality optics and Imaging Technology such as 4X objective lens and 5MP CMOS detector for consistent results and reliable performance
  • Autofocus system along with image analysis software work in conjunction with motorized stage to analyze and capture images in the proper focal plane
  • Advanced Algorithms easily detect and manage irregularly shaped and aggregated cells that are often misinterpreted by visual counting; thus providing accurate counts of the cells and eliminates user to user variation
  • Intuitive User Interface facilitates the adjustment of the cell count parameters
  • 1. Gating size range
  • 2. Aggregation level
  • 3. Live/dead definition
  • Choose to view the histogram data for individual or multiple chambers in each QuadSlide™
  • Optics: High quality 4x objective lens
  • Pixel Resolution: 2592 x 1944
  • Image Detection: 5 mega pixel CMOS sensor
  • Illumination: Green LED (50,000 hour life)
  • Sample Volume: 20ul (4 samples per QuadSlide)
  • Max. Counting Volume: 3.6ul (24 image captures)
  • Consumable Slide: QuadSlide, 4-chamber
  • Dynamic Range: 1 x 104 to 1 x 107 cells per ml
  • Cell Size Range: 5 to 60 um
  • Data Output: USB drive for PDF report
Show more

Show more

Analytical Instruments

  • 4-chambered disposable slides and QuadCount Automated Cell Counter QuadCount Automated Cell Counter with 4-chambered disposable QuadSlide
  • Product overview and user instructions of QuadCount Automated Cell Counter by Accuris Instruments Overview of QuadCount Automated Cell Counter by Accuris Instruments

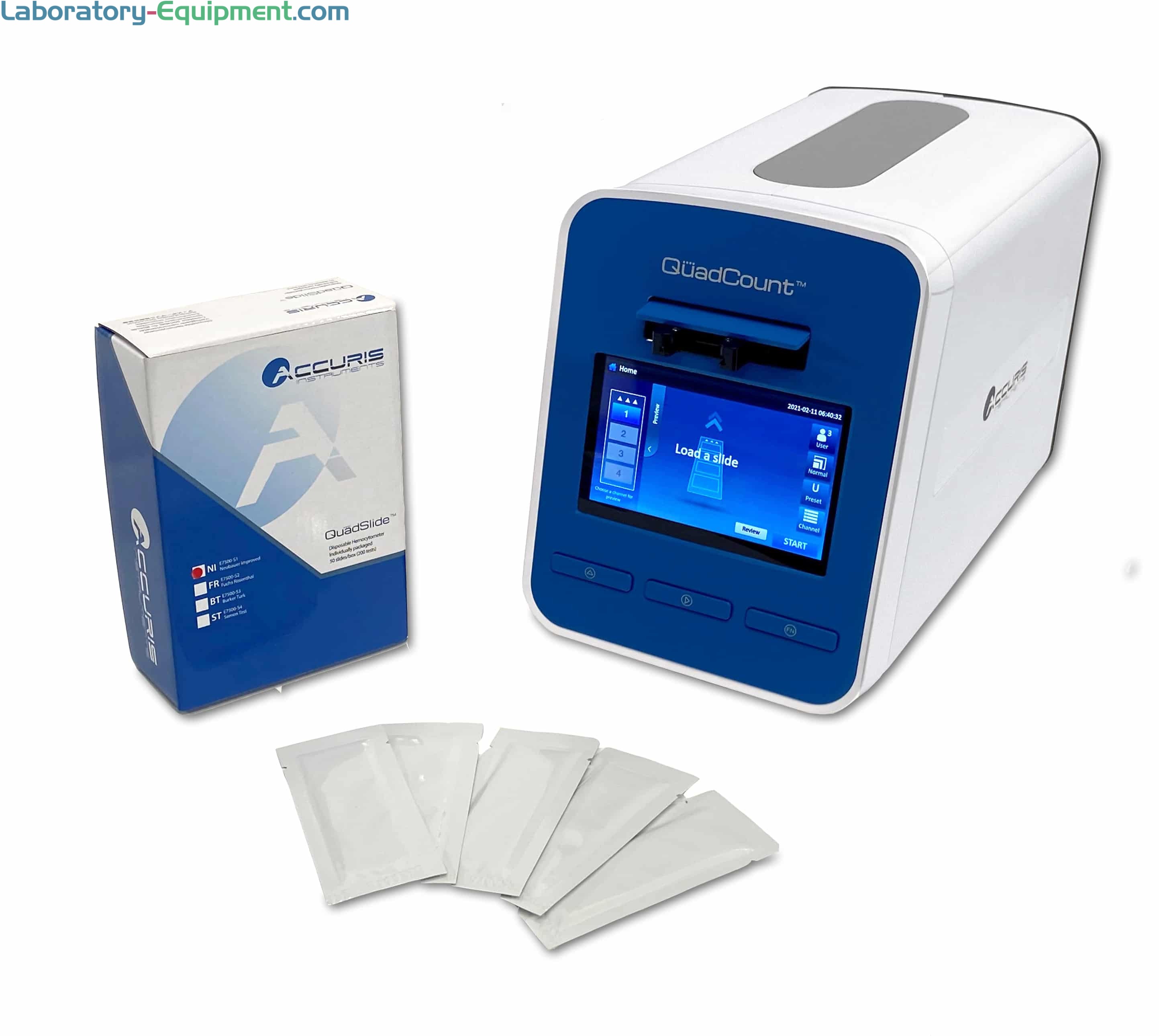

4-chambered disposable slides and QuadCount Automated Cell Counter
QuadCount Automated Cell Counter with a unique 4-chambered disposable QuadSlide for optimal counting performance QuadCount Automated Cell Counter with 4-chambered disposable QuadSlide
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.

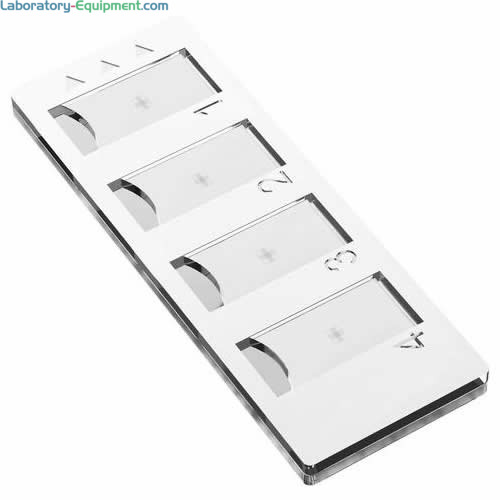

  • 4-chambered disposable QuadSlides for QuadCount Automated Cell Counters

    QuadSlides Pack of 50 for QuadCount Automated Cell Counters

    4-chambered disposable QuadSlides for QuadCount Automated Cell Counters
