Grinding system with disposable grinding chambers for precise, safe and contamination free milling | 6927-09 displayed...
Grinding system with disposable grinding chambers for precise, safe and contamination free milling | 6927-09 displayed
Mills

Mills, Tube Mill Control, 120 V

  • Eliminates possibility of cross-contamination
  • USB interface for control and documentation
  • The drive and grinding chambers are secured with labyrinth seal
  • Dust proof housing
  • Batch mill with disposable grinding chamber

• Adjustable Speed Control: Yes

• Volume: 40 ml

• Maximum Speed: 25000 rpm

• Cooling Method: Dry Ice

• Feature Pack: Batch: 5 Moh

• Grinding Procedure: Impact/Cutting

• Feed Hardness: 5 mohs

• Feed Grain Diameter: 10 mm

• Motor Output: 80W

• Manufacturer SKU: 4180001

• Unit of Measure: EA

Read more
Manufacturer SKU: 4180001
Manufactured By: IKA
Print
Call a Terra Mills specialist direct:

714-459-0770

Mon - Fri, 5:30 AM - 5:30 PM, PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
6927-09
Terra Part # 6927-09
$4,216
Usually ships in 10-14 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Need it now? Ask about our FasTrak expediting service!
Accessories related to Terra Part # 6927-09
63996
Mills, Tube Mill Control, 120 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Related Products
Buy Accessories
Product Details
  • Eliminates possibility of cross-contamination
  • USB interface for control and documentation
  • The drive and grinding chambers are secured with labyrinth seal
  • Dust proof housing
  • Batch mill with disposable grinding chamber
  • Permissible relative temperature 5 - 40 °C
  • Speed deviation 2 ± %
  • Timer, adjustable from 5s to 3 min
  • Protection class according to DIN EN 60529 IP 30
  • For small scale batch milling of materials
  • Ideal for grinding seeds such as corn and wheat
  • Disposable and stainless steel grinding chambers and spare parts sold separately
  • Security features: Unit starts only when clear hood is closed; Motor only operates when correct grinding chamber is attached; Machine will not start if grinding chamber is not properly closed; Grinding chamber cannot be opened when unit is in operation;
Show more

• Adjustable Speed Control: Yes

• Volume: 40 ml

• Maximum Speed: 25000 rpm

• Cooling Method: Dry Ice

• Feature Pack: Batch: 5 Moh

• Grinding Procedure: Impact/Cutting

• Feed Hardness: 5 mohs

• Feed Grain Diameter: 10 mm

• Motor Output: 80W

• Manufacturer SKU: 4180001

• Unit of Measure: EA

• Electrical Specifications: 120 V, 1 A, 200 W, 60 Hz

• Weight, Product: 5.95 Lbs

• Dimensions, Product: 8" W

• Weight, Shipping: 8 lb

• Package Type: Box

Show more
Other products you may find relevant
  1. Made of stainless steel, the hand-held UPLA-filtered Micro-Vac vacuum is clean and lightweight. A complete attachment kit is included | 5100-00 displayed
    Group of 2 products
    Universal MicroVac™ Portable Cleanroom Vacuum Cleaner From
    As low as $1,815
    Some ship in 1 - 3 days
Page 1 of 1
Buy Accessories
  1. Reduces soft, medium, hard and brittle materials with a Mohs hardness of up to 5 | 6927-10 displayed
    Mills, MT 40.10 Disposable Grinding Chamber Ships Free Free shipping in contiguous USA In stock
    $192
    Increase Down Increase Up
  2. Reduces soft, medium, hard and brittle materials with a Mohs hardness of up to 5 | 6927-10 displayed
    Mills, MT 40.100 Disposable Grinding Chamber Ships Free Free shipping in contiguous USA In stock
    $1,554
    Increase Down Increase Up
  3. Caps for stacking grinding chambers | 6927-12 displayed
    Mills, MTC 40.100 Cover for MT 40 Ships Free Free shipping in contiguous USA In stock
    $174
    Increase Down Increase Up
  4. Reduces soft, medium, hard and brittle materials with a Mohs hardness of up to 5 | 6927-13 displayed
    Mills, MT 40.10 Disposable Grinding Chamber sterile Ships Free Free shipping in contiguous USA In stock
    $378
    Increase Down Increase Up
  5. Includes a rich set of spare parts so that wearing parts can be replaced if necessary | 6927-15 displayed
    Mills, MMT 40.1 Stainless Steel Grinding Chamber Package Ships Free Free shipping in contiguous USA In stock
    $502
    Increase Down Increase Up
  6. Kit included necessary items required for replacement | 6927-16 displayed
    Mills, A-MMT 40.100 Abrasion Set Spare Parts Ships Free Free shipping in contiguous USA In stock
    $345
    Increase Down Increase Up
  7. Extended Product Warranty
    Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Mills

  • IKA Tube Mill Control Video IKA Tube Mill Control Video
IKA Tube Mill Control Video
IKA Tube Mill Control operation and disposable grinding chambers | 6927-09 displayed IKA Tube Mill Control Video IKA Tube Mill demonstration with disposable grinding chambers containing various materials

Features and Benefits

Learn More: Tube Mill Grinding Chambers

IKA Tube Mill Control Safety Features

Motor only recognizes compatible grinding chambers, open/close lid operation prevents accidental starts and stops and labyrinth seal prevents dust from entering motor

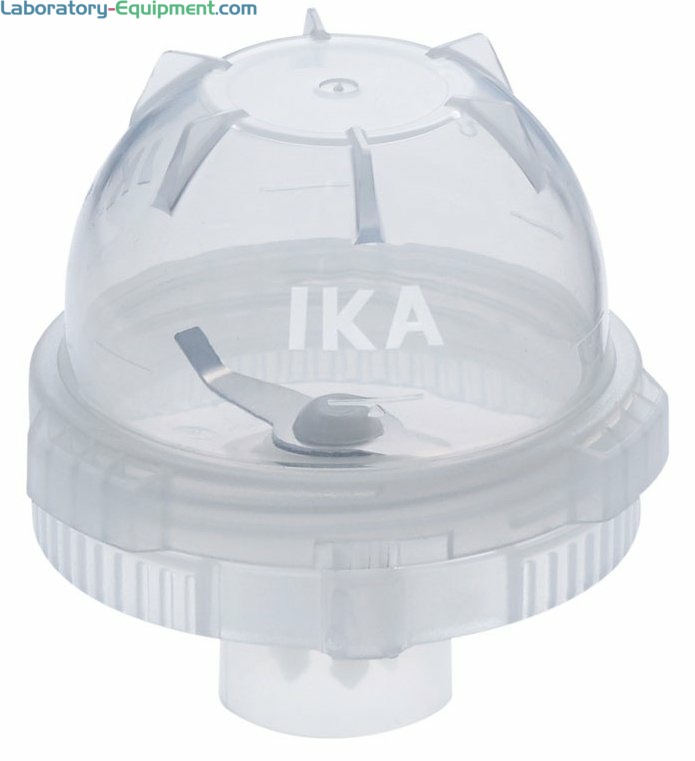

IKA Disposable Grinding Chambers

Disposable polypropylene grinding chambers for IKA Tube Mill Control save in cleaning costs

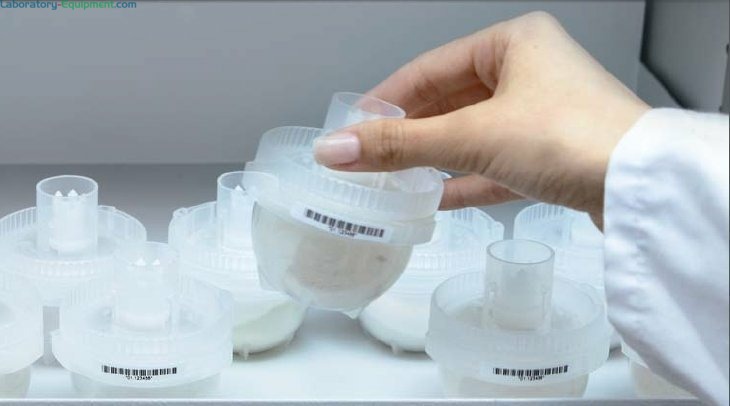

IKA Easy Sample Storage

Samples stored in disposable grinding chambers compatible with IKA Tube Mill Control
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.

  • Mills, MMT 40.1 Stainless Steel Grinding Chamber Package

  • Mills, MTC 40.100 Cover for MT 40

    Polypropylene covers enable stacking of disposable grinding chambers compatible with IKA Tube Mill Control; 100 quantity
  • IKA MT 40 Disposable Grinding Chambers

    IKA MT 40 Disposable Grinding Chambers

    Chemical resistant polypropylene Disposable Grinding Chambers, compatible with IKA Tube Mill Contro

  • Mills, A-MMT 40.100 Abrasion Set Spare Parts

    A-MMT 40.100 Abrasion Set Spare Parts (for use with MMT 40.1 Stainless Steel Grinding Chamber) includes 100 chamber sealings, 10 beaters and 10 couplings; compatible with IKA Tube Mill Control
