Compact, benchtop Microlab PREP Automated Liquid Handler with 8 deck positions and choice of three pipetting configurations and a variety of other options | 3030-55 displayed...
Compact, benchtop Microlab PREP Automated Liquid Handler with 8 deck positions and choice of three pipetting configurations and a variety of other options | 3030-55 displayed
Liquid Handlers & Robotics

Microlab PREP Automated Liquid Handler by Hamilton Robotics

Custom-configured product: Please request quote. Lab Equip will contact you for requirements.
  • Compact, modular Microlab PREP Automated Liquid Handler with a range of options for benchtop automation
  • Affordable benchtop model with a touchscreen interface and robust hardware
  • Built-in camera for easy labware detection and touchscreen programming
  • Three Pipetting Configurations and 8-position deck capacity
  • Air displacement pipetting for high accuracy and precise liquid handing

• Type: Automated Pipettor

• Model: Microlab PREP

• Manufactured by: Hamilton Robotics

• Sample Type: Microplates

• Configuration: Multi Channel

• Manufacturer SKU: Microlab PREP

• Capacity: [xxx]

• Unit of Measure: EA

Read more
Manufacturer SKU: Microlab PREP
Manufactured By: Hamilton
Print
Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
3030-55
Terra Part # 3030-55
Request Quote

Want it faster ? Read about FasTrak

Terra Part # 3030-55
79983
Request Quote

Want it faster ? Read about FasTrak

Save For Later
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Details & Specs
Manuals & Resources
Related Products
Product Details
  • Compact, modular Microlab PREP Automated Liquid Handler with a range of options for benchtop automation
  • Affordable benchtop model with a touchscreen interface and robust hardware
  • Built-in camera for easy labware detection and touchscreen programming
  • Three Pipetting Configurations and 8-position deck capacity
  • Air displacement pipetting for high accuracy and precise liquid handing
  • Modular design enables customization for application flexibility
  • Footprint: 3-square feet
  • Pipetting range: 0.5 μL to 1000 μL.
  • Easy-to-use software enables easy protocol set-up
  • Integrated camera detects and properly verifies labware on deck
  • Software: quick launch of most-used protocols, enables user to combine protocol steps to easier programming, run page shows real time progress of samples on deck, provides error notifications, maintenance guides
  • Compatible CO-RE Tips: 50 μL, 300 μL, 1000 μL
  • Compatible with ANSI/SLAS: 96-well plates and 384-well plates
  • Options for Microlab PREP:
  • Choose Pipetting configuration and options:
  • 2-channel: provides flexibility ideal for all labware types (accommodates Hamilton heater shaker)
  • 8 multi-probe head: optimized to quickly complete pipetting tasks and in bulk for compatible labware
  • 2 channels with 8 multi-probe head: provides flexibility and expedience for all pipetting tasks
  • Devices: 2mm heater shaker or 3mm Heater Shaker
  • Accessories: small tube rack for 24 microtubes or tube rack 24 full-size tubes, framed tip rack (for Hamilton CO-RE tips), reagent reservoir rack, handheld barcode scanner
  • Consumables: nested tip, 50 μl Nested Conductive Tips, 300 μl Nested Conductive Tips
  • Operation
  • Communication Ethernet, USB
  • Operating Temperature 15ºC to 35ºC
  • Operating Humidity 15% to 85% R.H. non-condensing
  • Storage Temperature -20ºC to 70ºC
  • Storage Humidity 10% to 90% R.H. non-condensing
Show more

• Type: Automated Pipettor

• Model: Microlab PREP

• Manufactured by: Hamilton Robotics

• Sample Type: Microplates

• Configuration: Multi Channel

• Manufacturer SKU: Microlab PREP

• Capacity: [xxx]

• Unit of Measure: EA

• Electrical Specifications: 100/240 V, 500 W, 50/60 Hz

• Weight, Product: 85 lb

• Dimensions, Product: 21" W x 32" D x 24" H

Show more
Other products you may find relevant
  1. FTIR 4600/4700 Spectrometers with a 45º Michelson interferometer and Peltier DLATGS detector; ATR Measurement and CFR software models available (call for info)
    Group of 5 products
    FT/IR 4000 and FT/IR 6000 Series Spectrometers by Jasco From
    As low as $19,344
    Some ship in 15 - 19 days
  2. Single monochromator, dual gratings, a PbS detector, 190-2700 nm UV-Vis range and optional 3200nm NIR wavelength kit; CFR software and Remote Module available
    Group of 2 products
    V-700 Series UV-Vis/NIR Spectrophotometers by Jasco From
    As low as $27,428
    Some ship in 15 - 19 days
  3. 1.6L Megafuge ST1 Plus Centrifuge Packages with TX-400 Swinging Bucket Rotor for cell culture or blood tubes include buckets, adapters and biocontainment lids
    Group of 6 products
    Megafuge ST1 and ST1R Plus Centrifuge Packages by Thermo Fisher Scientific From
    As low as $8,913
    Some ship in 10 - 14 days
  4. The qTower 3 Auto provides homogeneous excitation, detection and a two year device warranty | 1016-67 displayed
    Group of 4 products
    qTOWER 3 Real-Time PCR Thermal Cyclers by Analytik Jena From
    As low as $19,116
    Some ship in 10 - 16 days
  5. UV/Vis spectrometer-based SPECTROstar Nano Plate Reader for microplates and cuvettes measures full spectrum absorbance (220-1000 nm) in less than 1 second/well | 8000-86 displayed
    Plate Reader; SPECTROstar Nano, Absorbance, ELISA, 1536 Well, BMG LabTech
    $10,868
    Usually Ships in 10 - 20 days
Page 1 of 2

Liquid Handlers & Robotics

  • The Microlab Prep: Your First Step Into Automation by Hamilton Robotics The Microlab Prep: Your First Step Into Automation by Hamilton Robotics
  • Overview of Microlab PREP by Hamilton Robotics
  • : The Microlab Prep: Tiny Footprint, Big Benefits by Hamilton Robotics The Microlab Prep: Tiny Footprint, Big Benefits by Hamilton Robotics
  • How to Replace a Pipetting Head on the Microlab PREP by Hamilton Robotics
The Microlab Prep: Your First Step Into Automation by Hamilton Robotics
Video shows operator using the Microlab PREP modular automated liquid handling system by Hamilton Robotics The Microlab Prep: Your First Step Into Automation by Hamilton Robotics Initial operation of Microlab PREP modular automated liquid handling system by Hamilton Robotics

Features and Benefits

Touchscreen Software Interface

Convenient mounted touchscreen interface works with gloves and the user-friendly software enables easy protocol set up

Camera Identified Labware

Built-in mounted camera enables proper verification of labware on deck of Microlab PREP for easy programming of new protocols

Air Displacement Pipetting

Similar technology to manual pipetting enables high precision and accuracy with a range from 0.5 μL to 1000 μL

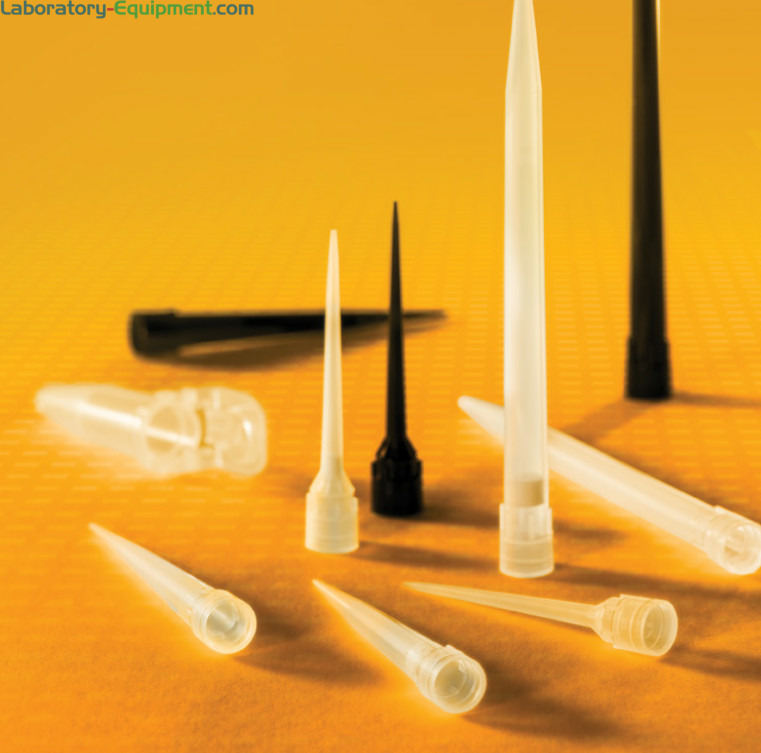

Wide Range of CO-RE Tips

CO-RE pipetting tips with a compressed O-ring expansion are compatible with all Hamilton Robotics liquid handling platforms
