Lightweight 6-channel airborne particle counter with a sensitivity range from 0.3 - 25.0 μm ideal for spot-checking critical environments and cleanrooms...

Lightweight 6-channel airborne particle counter with a sensitivity range from 0.3 - 25.0 μm ideal for spot-checking critical environments and cleanrooms

Lighthouse Handheld Airborne Particle Counters by LWS

Available ISO Ratings: ISO 7, ISO 8
6-ch models display cumulative and particle count data, and temperature/relative humidity data
Minimum sensitivity range: 0.2 to 0.5 μm; mass concentration mode model available (3016 IAQ)
Flow Rate: 0.1 CFM (2.83 LPM)
Holds 3,000 records of particle data and 50 sampling/report recipes
Count modes: Automatic, manual, beep, concentration, cumulative/differential

Warranty: Two-Year Manufacturer Warranty

Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Select Product

Detection Channels All 6 Channels Sort Order: Descending Ascending	Detection Range All 0.2 - 2.0 μm 0.3 - 10 µm 0.3 - 25 µm 0.5- 25.0 μm Sort Order: Descending Ascending	Counting Efficiency All 50% @ 0.2 µm, 100% > 0.3 µm 50% @ 0.3 µm, 100% > 0.45 µm 50% @ 0.5 µm, 100% > 0.75 µm Sort Order: Descending Ascending	ISO Class All ISO 7 Sort Order: Descending Ascending	Terra Part #	Price	Ships in
6 Channels	0.2 - 2.0 μm	50% @ 0.2 µm, 100% > 0.3 µm	ISO 7	1510-59 77853	$5,174	5-10 Days	2	Ships Free Free shipping in contiguous USA
6 Channels	0.3 - 10 µm	50% @ 0.3 µm, 100% > 0.45 µm	ISO 7	1510-62 77856	$4,254	5-10 Days	3	Ships Free Free shipping in contiguous USA
6 Channels	0.3 - 25 µm	50% @ 0.3 µm, 100% > 0.45 µm	ISO 7	1510-60 77854	$4,254	5-10 Days	4	Ships Free Free shipping in contiguous USA
6 Channels	0.5- 25.0 μm	50% @ 0.5 µm, 100% > 0.75 µm	ISO 7	1510-61 77855	$4,139	5-10 Days	5	Ships Free Free shipping in contiguous USA

Detection Channels

Detection Range

Counting Efficiency

ISO Class

Some ship in:

Usually Ships in:

CHOOSE ACCESSORIES & BUY OR QUOTE

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

See Product Details

Back to product group

Select a product line for product summary

4 products meet your criteria.

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Product Details

Features & Benefits

Products similar to this one

Buy Accessories

Manuals & Resources

Product Details

Available ISO Ratings: ISO 7, ISO 8
6-ch models display cumulative and particle count data, and temperature/relative humidity data
Minimum sensitivity range: 0.2 to 0.5 μm; mass concentration mode model available (3016 IAQ)
Flow Rate: 0.1 CFM (2.83 LPM)
Holds 3,000 records of particle data and 50 sampling/report recipes
Count modes: Automatic, manual, beep, concentration, cumulative/differential

Includes: removable battery, direct mount isokinetic sample probe, purge filter, temperature/relative humidity probe, power supply; power chord; LMS Express software, international support, Operating manual on CD

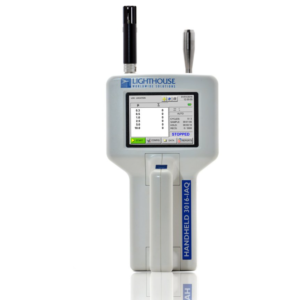

Handheld 2016: 0.2 - 2 μm

Handheld 3016: 0.3 - 25 μm

Handheld 5016: 0.5 - 25 μm

Handheld 3016-IAQ: 0.3 - 10.0 μm

Bright 3.5” TFT color touchscreen display Lightweight and ergonomic models feature an easily configurable interface with Zoom capability

Air Particle Counter Features: simultaneous viewing of six particle sizes, user-friendly interface, removable / rechargeable Li-Ion battery, removable probes, internal audible alarm, 50-record Configurable Recipe Database, 3,000 record data storage, alphanumeric location labels, Open Architecture Connectivity with OPC Server

Operating: 50°F to 104°F (10°C to 40°C) / 20% to 95%non-condensing

Storage:14°F to 122°F (-10°C to 50°C) / Up to 98%non-condensing

Meets ISO 21501-4 calibration using NIST traceable PSL spheres

Compliance: ISO 21501-4

Concentration limits: 8,000,000 particles /ft3 @ 10% coincidence loss

Laser Source: Extreme Life Laser Diode with > 20 years MTTF

Unit-to-Unit Accuracy and Repeatability

Test Wizard for Cleanroom Pass/Fail Reports: FS-209E, ISO-14644-1 or EU GMP Annex 1

Supporting software (sold separately): LMS Express, LMS Express RT, LMS Pharma, LMS Pro

Options: Carry Case, isokinetic sample probe with 6ft tubing, Li-Ion batteries, external battery charger with AC and car adapter, thermal printer and printer cable, printed operating manual

Particle Counters

Features & Benefits

Features and Benefits

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
