C200 Calorimeters

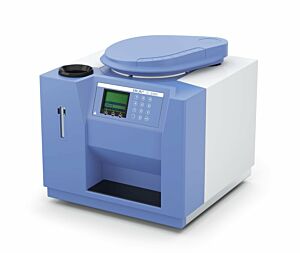

The compact, semi-automated C 200 Calorimeter from IKA measures caloric values for samples in educational labs | 6925-38 displayed...

The compact, semi-automated C 200 Calorimeter from IKA measures caloric values for samples in educational labs | 6925-38 displayed

Calorimeters

C200 Calorimeters

Semi-automated determination of caloric values of samples (liquid or solid)
Ideal in educational institutions and labs with low sample throughput
Able to operate in four calorimetric procedures: isoperibol, dynamic, manual and time-controlled
Manual (educational) operating mode for manual calculations, activating ignition and end of measurement; displays changes in one minute intervals
Reproducibility (using NIST benzoic acid 39j): 0.1% RSD

Manufactured By: IKA

Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Select Product

Voltage All 120/240 V Sort Order: Descending Ascending	Cooling Method All Oxygen Bomb Water Flow Sort Order: Descending Ascending	Modes All Isoperibol, Dynamic, Manual, Timed Sort Order: Descending Ascending	Chiller All No Yes Sort Order: Descending Ascending	Halogen Resistant All No Yes Sort Order: Descending Ascending	Maximum Working Temperature All 25°C Sort Order: Descending Ascending	Model All C200 Sort Order: Descending Ascending	Manufacturer SKU All 00088033701 8802501 Sort Order: Descending Ascending	Terra Part #	Price	Ships in
120/240 V	Oxygen Bomb	Isoperibol, Dynamic, Manual, Timed	No	No	25°C	C200	8802501	6926-38 63884	$21,702	10-14 Days	2	Ships Free Free shipping in contiguous USA
120/240 V	Water Flow	Isoperibol, Dynamic, Manual, Timed	Yes	Yes	25°C	C200	00088033701	6926-39A 75822	$29,205	10-14 Days	3	Ships Free Free shipping in contiguous USA

Voltage

Cooling Method

Modes

Chiller

Halogen Resistant

Maximum Working Temperature

Model

Manufacturer SKU

Some ship in:

Usually Ships in:

CHOOSE ACCESSORIES & BUY OR QUOTE

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

See Product Details

Back to product group

Select a product line for product summary

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Product Details

Features & Benefits

Products similar to this one

Buy Accessories

Product Details

Semi-automated determination of caloric values of samples (liquid or solid)
Ideal in educational institutions and labs with low sample throughput
Able to operate in four calorimetric procedures: isoperibol, dynamic, manual and time-controlled
Manual (educational) operating mode for manual calculations, activating ignition and end of measurement; displays changes in one minute intervals
Reproducibility (using NIST benzoic acid 39j): 0.1% RSD

User-friendly display shows four test modes, automatic ignition and calculation of calorific value

GOST-Certified

Includes decomposition vessel C 5010 (or C 5012), oxygen station C 248 and power supply

Max working temperature: 25°C

Operating Oxygen Pressure: 30 bar

Compliance: DIN 51900, ISO 1928, ASTM D240, ASTM D4809, ASTM, D5865, ASTM D1989, ASTM D5468, ASTM E711

RS232 port for PC connection

Manual oxygen filling of decomposition vessel

Automated water filling of internal vessel for accuracy (user refills the water reservoir)

Includes consumables needed for installation and calibration

Available accessories include crucibles, consumables and more!

Features & Benefits

Features and Benefits

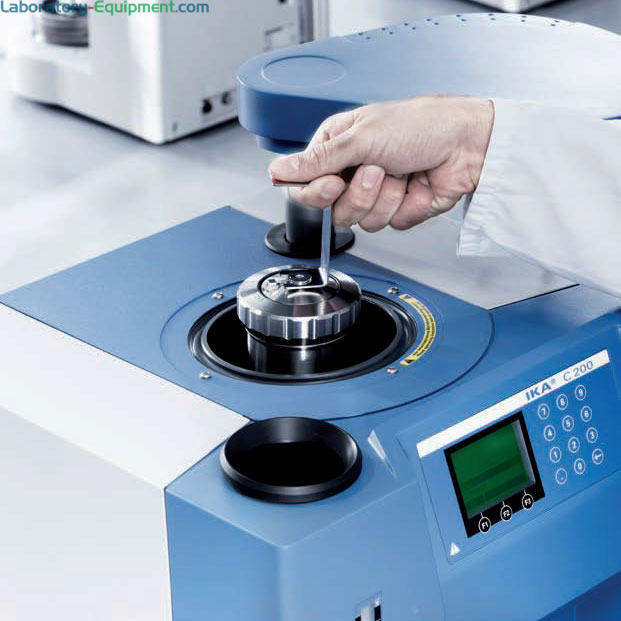

Decomposition Vessel for C 200 Calorimeter

The included screw-top decomposition vessel (C 5010) is constructed from stainless steel and has a fixed ignition wire. These vessels have a 260mL usable volume and can be safely filled with up to 30 bar of oxygen.

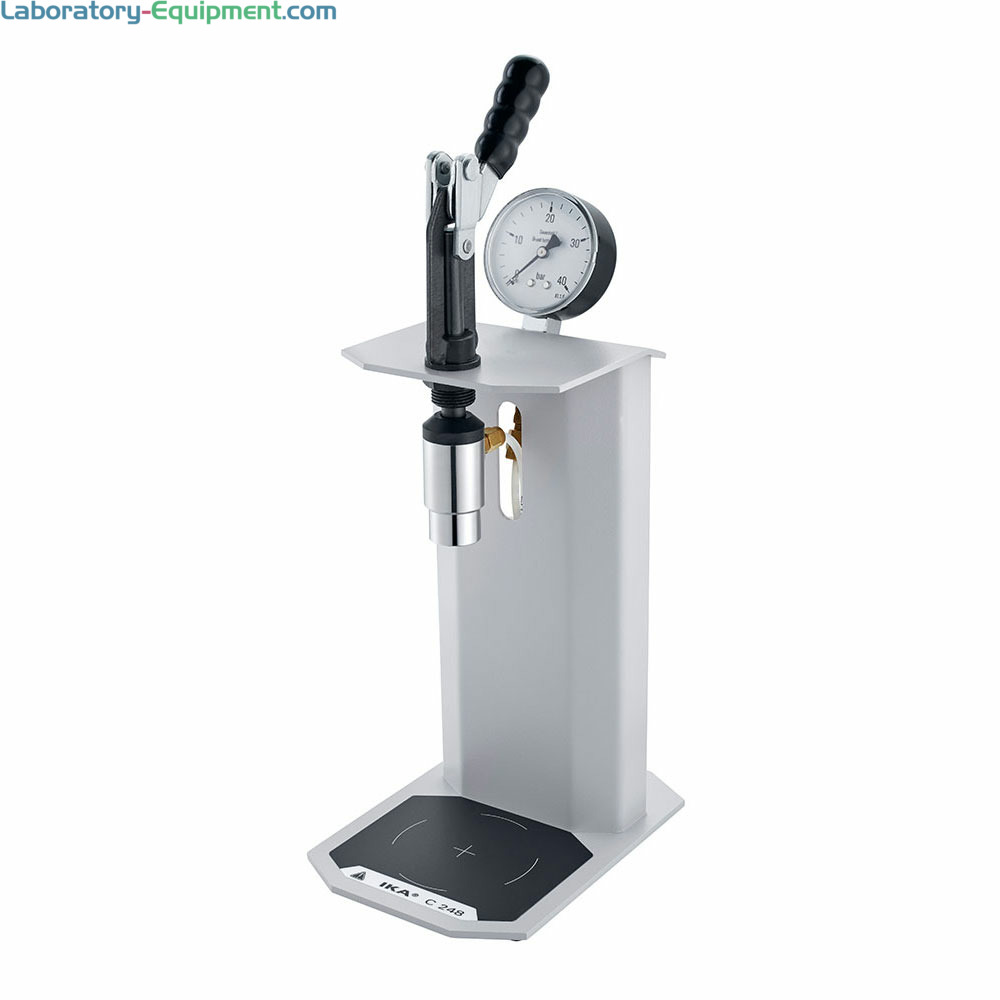

Oxygen Filling Station for C 200 Calorimeter

The included oxygen filling station has a manometer with a 6.5’ pressure hose, designed for operation with C 5010 decomposition vessels.

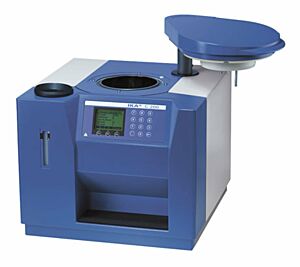

Compact, Low-Volume Instrument

The lid of the C 200 Calorimeter automatically closes shut after rotating it back over the opening (LCD screen prompts the user to close the lid when ready). After operation, the lid can be gently lifted out of the way.
